Transformator On Ferrit Ring
Let's see how to make a design for a converter to feed a supermarket light. Such a scheme could be a good start for a practical study of electronics. On the basis of this transformer, we will continue to collect some interesting and useful electronic business with our hands.

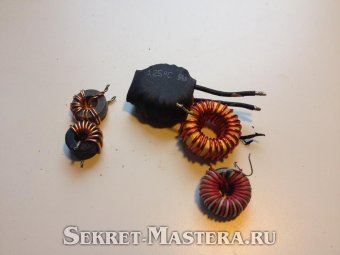

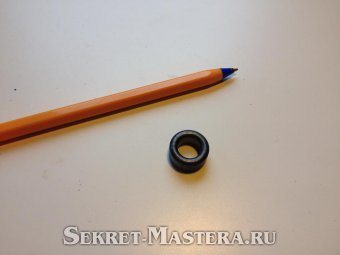

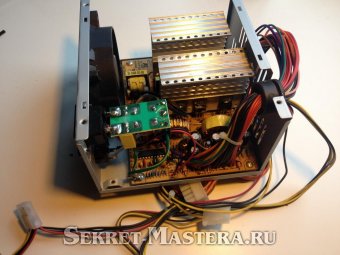

The first difficulty in compiling the scheme is the acquisition of a ferrit ring. Ferrite rings are an integral part of impulse power supply devices (computers, televisions, monitors, video monitors, etc.) Finding an old or broken tech isn't gonna work. For example, some rings can be found in the power cell of a computer in the dirts of the power filter. Dissells are removed from the fee, the mooring is removed by liberating the ferrit ring.

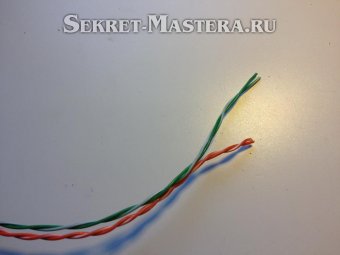

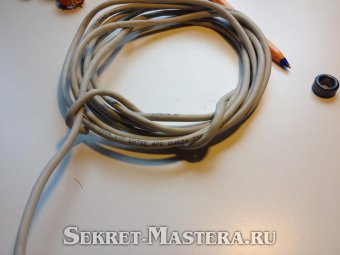

The second difficulty in collecting the diagram is finding the wiring wire. The wire is also easily accessible, two pieces of wire in isolation are easily extracted from the UTP type web cables, two wires length 0, 5-1 m are sufficient.
Radiated, also dipped out of obsolete or defective equipment. There is one resistance to the nominal 300 Om - 10 kOm, any transistor n-p-n of the structure, and of course the secular. The transist calculus is determined by the search demand.transcript marking datashit.
It is acceptable to establish p-n-p transcripts in the structure, but this will require a change in the polarity of the diagram and seculars.

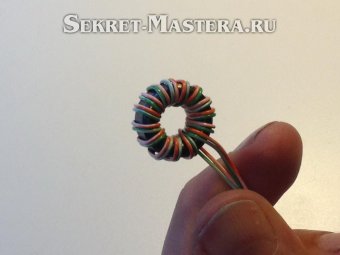

The collection of the thorroid transformer is shown on video. The washings are going to be in two wires with their hands. The mean point is formed by the initiation of one wet with the end of another. Look at the photo. Ten to 30 turns.
That's the right thing to do. Application Toroide transformerCompared to the pattern of transformer with an air transformer, the CPA and the cost-effectiveness of the transformer scheme have increased dramatically. The converter will even begin with a voltage of 0, 3 volts! If there's any questions, ask!
Based on this transformer, several useful and interesting devices will be collected on the website pages.
